Tracheal tube
Your current position：Home > Products > Anesthesiology > Tracheal tube > Endotracheal tube
 |
 |
 |
|
|
1. Thermosensitive and kink-resistant PVC ensure flexibility of tube, perfectly fit to airways
2.Smooth tubing wall prevents secretions gathering
- Product details

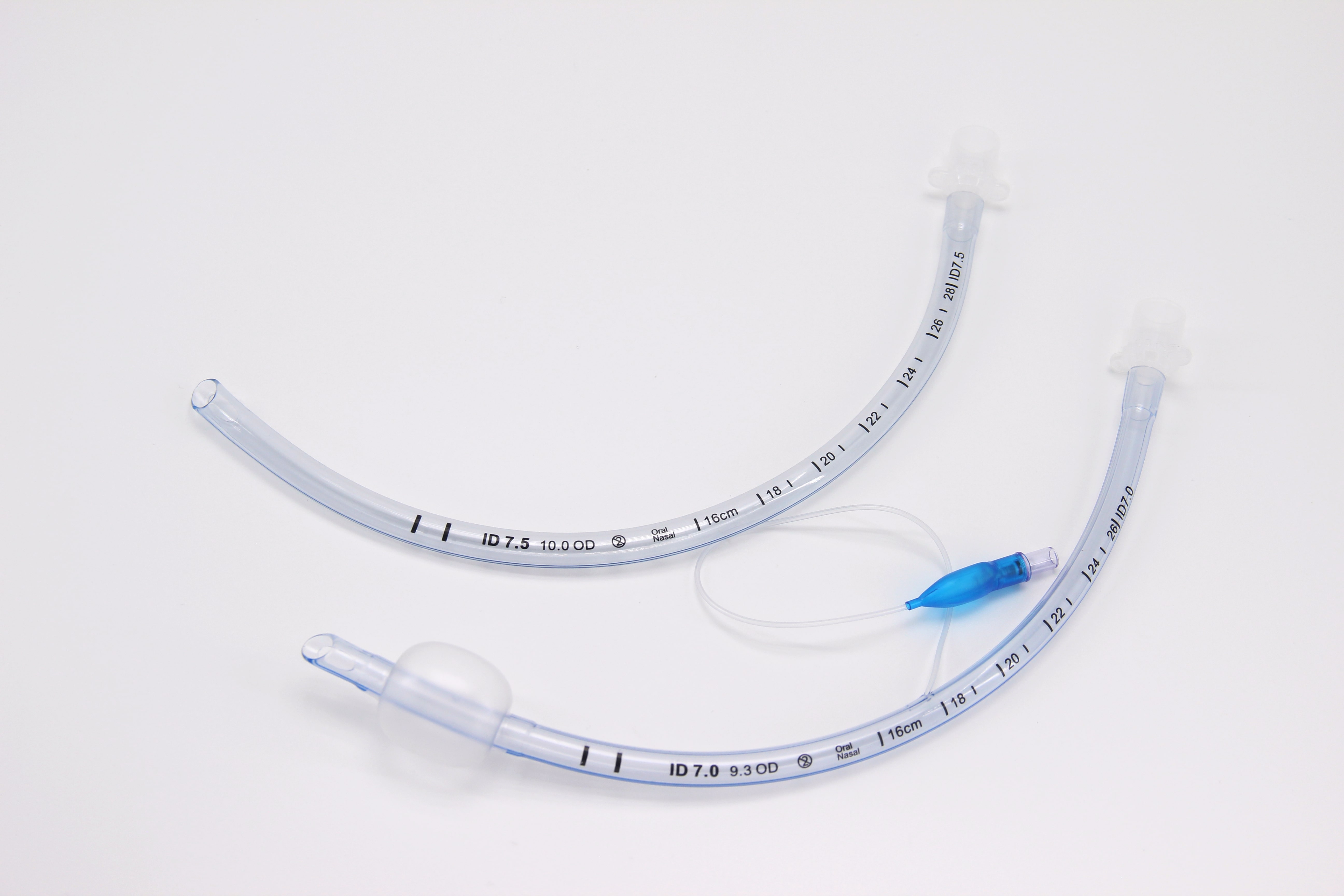

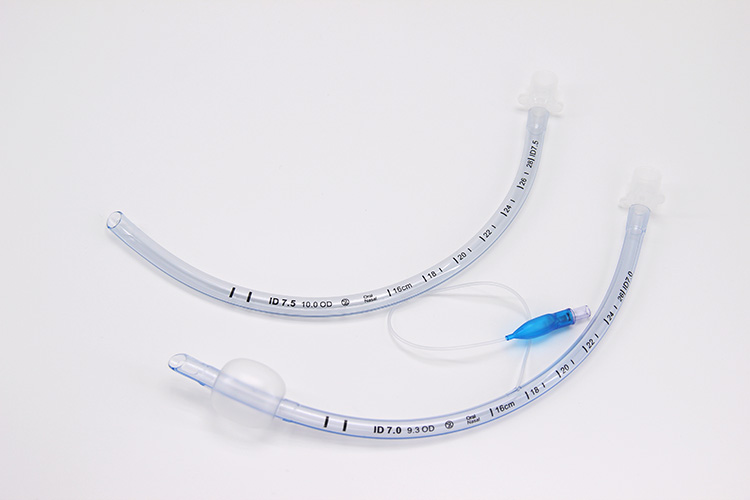

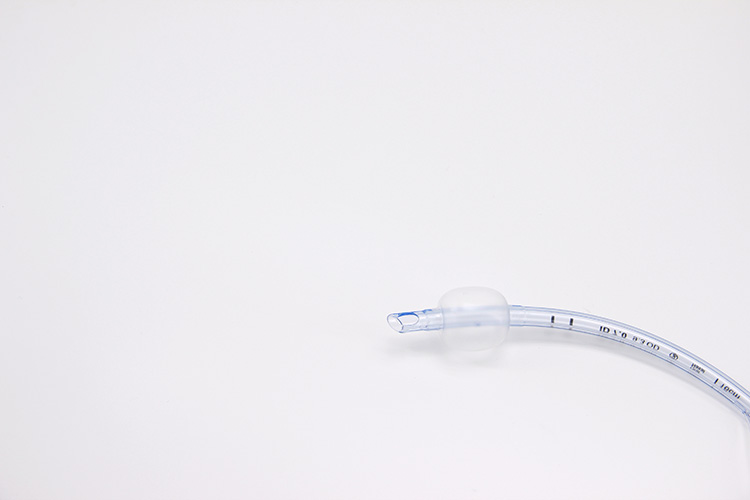

Endotracheal Tube
Intended purpose
Benefits
1. Atraumaticity Softly: rounded bevel tip ensures atraumatic and smooth intubation and facilitates fiberoptic intubation.
2. Murphy Eye: Smoothly formed to avoid vocal cord damage during intubation.
3. Soft Intubation: A soft transition between cuff and shaft without sharp edges provides atraumatic and smooth in and extubation.
4. Effective seal: Cylindrical shaped and thin walled. High Volume Low Pressure (HVLP) cuff for soft and effective sealing.
5. Depth markings: Double depth marking helps to guide intubation by laryngoscopy ensuring accuratet placement.
6. Radiopaque x-ray line: Facilitates verification of tube positioning visible to the tip.
7. Accurate Position Control: Grading in 1 cm steps provides reliable control of the tube position.
8. Medical grade PVC: Soft, thermosensitive, kink resistant ensures optimal anatomical adaption.
9. 15 mm standard connector: Assures safty connection with filters and circuits.
Standard:
Features:
No irritation in patients with smooth head tip.
Endotracheal tubes are usually recommended for patients less than five years.
Endotracheal tube standard uncuffed (with Murphy eyes)
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC0120U |
2.0 |
HTC0165U |
6.5 |
|
HTC0125U |
2.5 |
HTC0170U |
7.0 |
|
HTC0130U |
3.0 |
HTC0175U |
7.5 |
|
HTC0135U |
3.5 |
HTC0180U |
8.0 |
|
HTC0140U |
4.0 |
HTC0185U |
8.5 |
|
HTC0145U |
4.5 |
HTC0190U |
9.0 |
|
HTC0150U |
5.0 |
HTC0195U |
9.5 |
|
HTC0155U |
5.5 |
HTC0100U |
10.0 |
|
HTC0160U |
6.0 |
- |
|
Endotracheal tube standard cuffed (with Murphy eyes)
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC0125C |
2.5 |
HTC0165C |
6.5 |
|
HTC0130C |
3.0 |
HTC0170C |
7.0 |
|
HTC0135C |
3.5 |
HTC0175C |
7.5 |
|
HTC0140C |
4.0 |
HTC0180C |
8.0 |
|
HTC0145C |
4.5 |
HTC0185C |
8.5 |
|
HTC0150C |
5.0 |
HTC0190C |
9.0 |
|
HTC0155C |
5.5 |
HTC0195C |
9.5 |
|
HTC0160C |
6.0 |
HTC0100C |
10.0 |
Endotracheal tube standard uncuffed (without Murphy eyes)
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC1720U |
2.0 |
HTC1765U |
6.5 |
|
HTC1725U |
2.5 |
HTC1770U |
7.0 |
|
HTC1730U |
3.0 |
HTC1775U |
7.5 |
|
HTC1735U |
3.5 |
HTC1780U |
8.0 |
|
HTC1740U |
4.0 |
HTC1785U |
8.5 |
|
HTC1745U |
4.5 |
HTC1790U |
9.0 |
|
HTC1750U |
5.0 |
HTC1795U |
9.5 |
|
HTC1755U |
5.5 |
HTC1700U |
10.0 |
|
HTC1760U |
6.0 |
- |
- |
Endotracheal tube standard cuffed (without Murphy eyes)
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC0125C |
2.5 |
HTC0165C |
6.5 |
|
HTC0130C |
3.0 |
HTC0170C |
7.0 |
|
HTC0135C |
3.5 |
HTC0175C |
7.5 |
|
HTC0140C |
4.0 |
HTC0180C |
8.0 |
|
HTC0145C |
4.5 |
HTC0185C |
8.5 |
|
HTC0150C |
5.0 |
HTC0190C |
9.0 |
|
HTC0155C |
5.5 |
HTC0195C |
9.5 |
|
HTC0160C |
6.0 |
HTC0100C |
10.0 |
Nasal Preformed Endotracheal Tube
Features:
The preformed bend lies comfortably at the nares and can be cut shorter for easier suctioning.
The design ensures good access to the face allowing the surgeon to observe the effect of the maxilla manipulation on facial symmetry.
Polyurethane material has good kink-resistant properties, making it particularly appropriate for oral surgery.
Nasal preformed endotracheal tube uncuffed
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC0230NU |
3.0 |
HTC0270NU |
7.0 |
|
HTC0235NU |
3.5 |
HTC0275NU |
7.5 |
|
HTC0240NU |
4.0 |
HTC0280NU |
8.0 |
|
HTC0245NU |
4.5 |
HTC0285NU |
8.5 |
|
HTC0250NU |
5.0 |
HTC0290NU |
9.0 |
|
HTC0255NU |
5.5 |
HTC0295NU |
9.5 |
|
HTC0260NU |
6.0 |
HTC0200NU |
10.0 |
|
HTC0265NU |
6.5 |
- |
- |
Nasal preformed endotracheal tube cuffed
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC0230NC |
3.0 |
HTC0270NC |
7.0 |
|
HTC0235NC |
3.5 |
HTC0275NC |
7.5 |
|
HTC0240NC |
4.0 |
HTC0280NC |
8.0 |
|
HTC0245NC |
4.5 |
HTC0285NC |
8.5 |
|
HTC0250NC |
5.0 |
HTC0290NC |
9.0 |
|
HTC0255NC |
5.5 |
HTC0295NC |
9.5 |
|
HTC0260NC |
6.0 |
HTC0200NC |
10.0 |
|
HTC0265NC |
6.5 |
- |
- |
Oral Preformed Endotracheal tube
Features:
1mm graduations on both sides to assist with positioning of the tube.
The clear tube is intended to allow moisture condensation from the breath to be seen.
The soft cuff is made from soft PVC material, reducing the risk of trauma.
Components:
Cuffed Oral preformed Endotracheal tube consists of main tube, cuff, inflation set (Inflation line, pilot balloon and inflation valve), 15mm connector, intubating stylet.
Uncuffed Oral preformed Endotracheal tube is identical to the cuffed one except that it has no cuff.
Oral preformed endotracheal tube uncuffed
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC0230OU |
3.0 |
HTC0270OU |
7.0 |
|
HTC0235OU |
3.5 |
HTC0275OU |
7.5 |
|
HTC0240OU |
4.0 |
HTC0280OU |
8.0 |
|
HTC0245OU |
4.5 |
HTC0285OU |
8.5 |
|
HTC0250OU |
5.0 |
HTC0290OU |
9.0 |
|
HTC0255OU |
5.5 |
HTC0295OU |
9.5 |
|
HTC0260OU |
6.0 |
HTC0200OU |
10.0 |
|
HTC0265OU |
6.5 |
- |
- |
Oral preformed endotracheal tube cuffed
|
Item no. |
Size (mm) |
Item no. |
Size (mm) |
|
HTC0230OC |
3.0 |
HTC0270OC |
7.0 |
|
HTC0235OC |
3.5 |
HTC0275OC |
7.5 |
|
HTC0240OC |
4.0 |
HTC0280OC |
8.0 |
|
HTC0245OC |
4.5 |
HTC0285OC |
8.5 |
|
HTC0250OC |
5.0 |
HTC0290OC |
9.0 |
|
HTC0255OC |
5.5 |
HTC0295OC |
9.5 |
|
HTC0260OC |
6.0 |
HTC0200OC |
10.0 |
|
HTC0265OC |
6.5 |
- |
- |
