Heat and Moisture Exchanger Filter

Source:    Published:2022-07-15     Hist:

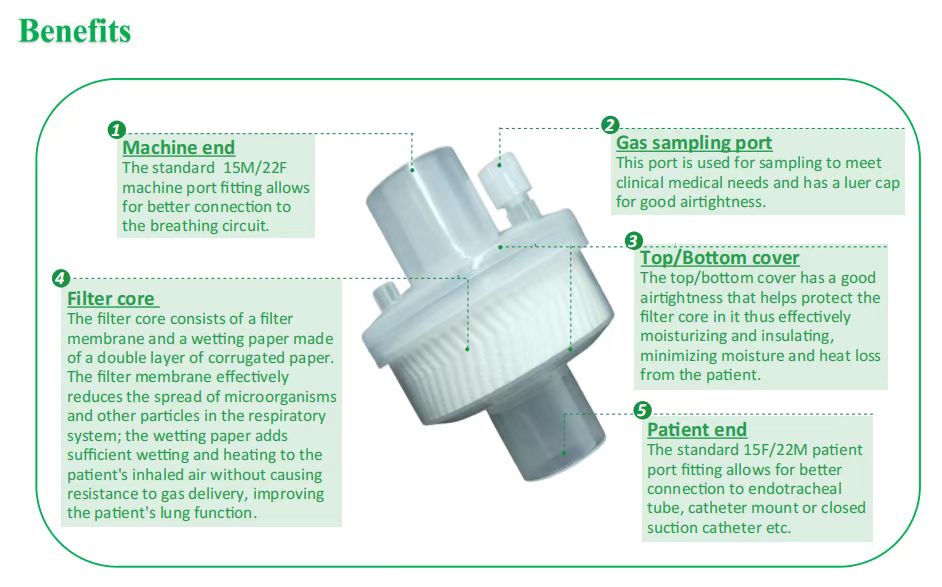

The heat and moisture exchanger filter is intended for providing optimal moisture and temperature output with low resistance to flow and bi-directional filtration with bacterial/viral efficiency offering cross-contamination protection for patients when the clinical gas pass through.

Features:
High bacterial viral efficiency, insulation and moisturizing. Well-sealing protects the subject against cross contamination. Filters are effective for filtration of bacteria, viruses and expectorated matter.

Tidal volume: 250ml moisture loss ≤ 17.5mg/L

                    500ml moisture loss ≤ 19.5mg/L

Gas-leakage: testing at 7.0 ± 0.35 kpa, ≤ 25ml/min

Compliance: testing at 7.0 ± 0.35 kpa, ≤ 15 ml/kpa

Pressure drop: Flow 30L/min, ≤ 0.6kpa

                     Flow 60L.min, ≤ 0.6kpa
